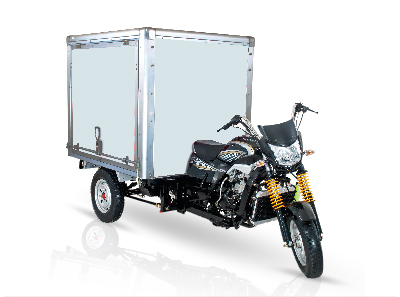

NEW KARYA 150 BOX
RANGKA / BODY
| PANJANG X LEBAR X TINGGI |
|
3005 x 1250 x 1850 mm |
|
| JARAK SUMBU |
|
2040 mm |
|
| JARAK TERENDAH KE TANAH |
|
175 mm |
|
| TIPE SUSPENSI DEPAN |
|
Teleskopik |
|
| TIPE SUSPENSI BELAKANG |
|
Pegas daun, peredam hidrolik |
|
| REM DEPAN |
|
Tromol |
|
| REM BELAKANG |
|
Tromol R/L |
|
| UKURAN BAN DEPAN |
|
4.00 - 12 |
|
| UKURAN BAN BELAKANG |
|
4.00 - 12 |
|
| UKURAN VELG DEPAN |
|
12 x 3.00 |
|
| UKURAN VELG BELAKANG |
|
12 x 3.00 |
|
| KAPASITAS TANGKI BAHAN BAKAR |
|
12.5 Liter |
|
| KAPASITAS MINYAK PELUMAS GARDAN |
|
500 ml |
|
| DAYA ANGKUT |
|
377 Kg |
|
| BERAT KOSONG |
|
451 Kg |
|
| PANJANG X LEBAR X TINGGI (BAK) |
|
1500 x 1250 x 1250 mm |
|
| PANJANG X TINGGI (JAGAAN SAMPING BAK) |
|
1050 x 1120 mm |
|
MESIN / ENGINE
| TIPE MESIN |
|
4 Langkah OHV, Water Cooler (Radiator) Single Cylinder Vertical |
|
| DIAMETER X LANGKAH |
|
62.0 x 49.5 mm |
|
| KAPASITAS SILINDER |
|
150 cc |
|
| DAYA MAKSIMUM |
|
7.5/7500 KW/rpm |
|
| TORSI MAKSIMUM |
|
9.8/7000 N.m/rpm |
|
| KAPASITAS MINYAK PELUMAS MESIN |
|
1.2 Liter |
|
| KOPLING |
|
Manual, Multiplate Wet Clutch |
|
| GIGI TRANSMISI |
|
5 Kecepatan |
|
| POLA PENGOPERASIAN TRANSMISI |
|
N-1-2-3-4-5 |
|
| STATER |
|
Pedal dan Elektrik |
|
| BATERAI |
|
12 Volt, 10 Ah |
|
| BUSI |
|
P-A7HC |
|
| SISTEM PENGAPIAN |
|
DC/CDI |
|
| STARTOR COMP. (SPUL) |
|
12 pole |
|
| PERBANDINGAN KOMPRESI |
|
9.2 : 1 |
|
|
|
NEW KARYA 150 BHS
RANGKA / BODY
| PANJANG X LEBAR X TINGGI |
|
3005 x 1250 x 1850 mm |
|
| JARAK SUMBU |
|
2040 mm |
|
| JARAK TERENDAH KE TANAH |
|
175 mm |
|
| TIPE SUSPENSI DEPAN |
|
Teleskopik |
|
| TIPE SUSPENSI BELAKANG |
|
Pegas daun, peredam hidrolik |
|
| REM DEPAN |
|
Tromol |
|
| REM BELAKANG |
|
Tromol R/L |
|
| UKURAN BAN DEPAN |
|
4.00 - 12 |
|
| UKURAN BAN BELAKANG |
|
4.00 - 12 |
|
| UKURAN VELG DEPAN |
|
12 x 3.00 |
|
| UKURAN VELG BELAKANG |
|
12 x 3.00 |
|
| KAPASITAS TANGKI BAHAN BAKAR |
|
12.5 Liter |
|
| KAPASITAS MINYAK PELUMAS GARDAN |
|
500 ml |
|
| DAYA ANGKUT |
|
372 Kg |
|
| BERAT KOSONG |
|
457 Kg |
|
| PANJANG X LEBAR X TINGGI (BAK) |
|
1500 x 1250 x 1250 mm |
|
| PANJANG X TINGGI (PINTU SAMPING ATAS) |
|
1300 X 740 mm |
|
| PANJANG X TINGGI (PINTU SAMPING BAWAH) |
|
1300 X 370 mm |
|
| PANJANG X TINGGI (PINTU BELAKANG ATAS) |
|
1050 X 740 mm |
|
| PANJANG X TINGGI (PINTU BELAKANG BAWAH) |
|
1050 X 370 mm |
|
| MATERIAL DINDING ( KARGO ) |
|
Aluminium Composite |
|
| MATERIAL TIANG ( KARGO ) |
|
Profil Tiang Aluminium |
|
| MATERIAL ATAP ( KARGO ) |
|
Zingkalum |
|
| MATERIAL PINTU ( KARGO ) |
|
Aluminium Composite |
|
| MATERIAL RANGKA ( KARGO ) |
|
Besi Plat 1.2 mm Bending |
|
| MATERIAL LANTAI ( KARGO ) |
|
Plat Besi 1.2 mm |
|
| BERAT KOSONG ( KARGO ) |
|
147 Kg |
|
MESIN / ENGINE
| TIPE MESIN |
|
4 Langkah OHV, Water Cooler (Radiator) Single Cylinder Vertical |
|
| DIAMETER X LANGKAH |
|
62.0 x 49.5 mm |
|
| KAPASITAS SILINDER |
|
150 cc |
|
| DAYA MAKSIMUM |
|
7.5/7500 KW/rpm |
|
| TORSI MAKSIMUM |
|
9.8/7000 N.m/rpm |
|
| KAPASITAS MINYAK PELUMAS MESIN |
|
1.2 Liter |
|
| KOPLING |
|
Manual, Multiplate Wet Clutch |
|
| GIGI TRANSMISI |
|
5 Kecepatan |
|
| POLA PENGOPERASIAN TRANSMISI |
|
N-1-2-3-4-5 |
|
| STATER |
|
Pedal dan Elektrik |
|
| BATERAI |
|
12 Volt, 10 Ah |
|
| BUSI |
|
P-A7HC |
|
| SISTEM PENGAPIAN |
|
DC/CDI |
|
| STARTOR COMP. (SPUL) |
|
12 pole |
|
| PERBANDINGAN KOMPRESI |
|
9.2 : 1 |
|
|
|
NEW KARYA 150 BFS
RANGKA / BODY
| PANJANG X LEBAR X TINGGI |
|
3005 x 1250 x 1850 mm |
|
| JARAK SUMBU |
|
2040 mm |
|
| JARAK TERENDAH KE TANAH |
|
175 mm |
|
| TIPE SUSPENSI DEPAN |
|
Teleskopik |
|
| TIPE SUSPENSI BELAKANG |
|
Pegas daun, peredam hidrolik |
|
| REM DEPAN |
|
Tromol |
|
| REM BELAKANG |
|
Tromol R/L |
|
| UKURAN BAN DEPAN |
|
4.00 - 12 |
|
| UKURAN BAN BELAKANG |
|
4.00 - 12 |
|
| UKURAN VELG DEPAN |
|
12 x 3.00 |
|
| UKURAN VELG BELAKANG |
|
12 x 3.00 |
|
| KAPASITAS TANGKI BAHAN BAKAR |
|
12.5 Liter |
|
| KAPASITAS MINYAK PELUMAS GARDAN |
|
500 ml |
|
| DAYA ANGKUT |
|
372 Kg |
|
| BERAT KOSONG |
|
454 Kg |
|
| PANJANG X LEBAR (KARGO) |
|
1500 x 1250 x 1250 mm |
|
| PANJANG X TINGGI (PINTU SAMPING) |
|
1300 X 1120 mm |
|
| PANJANG X TINGGI (PINTU BELAKANG) |
|
1050 X 1120 mm |
|
| MATERIAL DINDING ( KARGO ) |
|
Aluminium Composite |
|
| MATERIAL TIANG ( KARGO ) |
|
Profil Tiang Aluminium |
|
| MATERIAL ATAP ( KARGO ) |
|
Zingkalum |
|
| MATERIAL PINTU ( KARGO ) |
|
Aluminium Composite |
|
| MATERIAL RANGKA ( KARGO ) |
|
Besi Plat 1.2 mm Bending |
|
| MATERIAL LANTAI ( KARGO ) |
|
Plat Besi 1.2 mm |
|
| BERAT KOSONG ( KARGO ) |
|
144 Kg |
|
MESIN / ENGINE
| TIPE MESIN |
|
4 Langkah OHV, Water Cooler (Radiator) Single Cylinder Vertical |
|
| DIAMETER X LANGKAH |
|
62.0 x 49.5 mm |
|
| KAPASITAS SILINDER |
|
150 cc |
|
| DAYA MAKSIMUM |
|
7.5/7500 KW/rpm |
|
| TORSI MAKSIMUM |
|
9.8/7000 N.m/rpm |
|
| KAPASITAS MINYAK PELUMAS MESIN |
|
1.2 Liter |
|
| KOPLING |
|
Manual, Multiplate Wet Clutch |
|
| GIGI TRANSMISI |
|
5 Kecepatan |
|
| POLA PENGOPERASIAN TRANSMISI |
|
N-1-2-3-4-5 |
|
| STATER |
|
Pedal dan Elektrik |
|
| BATERAI |
|
12 Volt, 10 Ah |
|
| BUSI |
|
P-A7HC |
|
| SISTEM PENGAPIAN |
|
DC/CDI |
|
| STARTOR COMP. (SPUL) |
|
12 pole |
|
| PERBANDINGAN KOMPRESI |
|
9.2 : 1 |
|
|
