RANGKA / BODY
| PANJANG X LEBAR X TINGGI |
3210 x 1300 x1500 mm |
| TIPE SUSPENSI DEPAN |
Fr Absorber with Swing Arm |
| TIPE SUSPENSI BELAKANG |
Leaf Spring with Absorber |

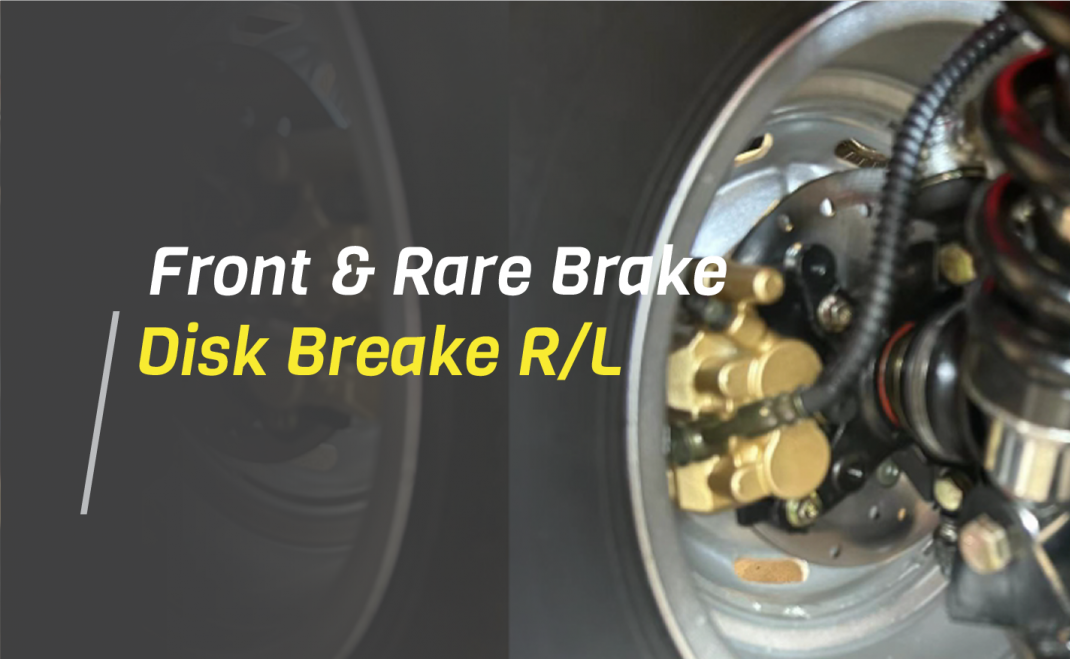

| REM DEPAN |
Cakram R/L |
| REM BELAKANG |
Cakram R/L |
| KAPASITAS TANGKI BAHAN BAKAR |
12 Liter |
| LEBAR SUMBU RODA |
Depan 800mm, Belakang 950 mm |
| JARAK SUMBU |
2100 mm |
| JARAK TERENDAH KE TANAH |
210 mm |
| LEBAR TOTAL BAN BELAKANG |
1200 mm |
| GARDAN |
4 x 4 Differential High-Low |
| PANJANG X TINGGI (JAGAAN SAMPING BAK) |
1200 x 510 mm |
| PANJANG X LEBAR X TINGGI BAK |
1610 x 1210 x 870 mm |
| DAYA ANGKUT |
750 Kg |
| UKURAN BAN DEPAN |
205/80-12 |
| UKURAN BAN BELAKANG |
255/65-12 |
|
MESIN / ENGINE
| TIPE MESIN |
4 Langkah OHV, Water Cooled Engine (Radiator) Single Cylinder Vertical |
| KAPASITAS SILINDER |
350 cc |
| KOMPRESI |
10 : 1 |
| DIAMETER & LANGKAH |
76 x 76 mm |
| DAYA MAKSIMUM |
13.5/5500Kw/Rpm |
| TORSI MAKSIMUM |
24/4500 Nm/Rpm |
| KAPASITAS MINYAK PELUMAS MESIN |
1.2 Liter |
| KAPASITAS MINYAK PELUMAS GARDAN |
750 ml dengan High-Low |
| GIGI TRANSMISI |
5 Kecepatan |
| KOPLING |
Manual, Multiplate Wet Clutch |
| POLA PENGOPERASIAN TRANSMISI |
N-1-2-3-4-5 |
| BATERAI |
12 Volt, 10 Ah |
| SISTEM PEMBAKARAN |
Karburator |
| PENDINGIN MESIN |
Water Cooler (Radiator) |
| BATERAI |
12 Volt , 32 AH |
| BUSI |
Champion A8YC |
|
